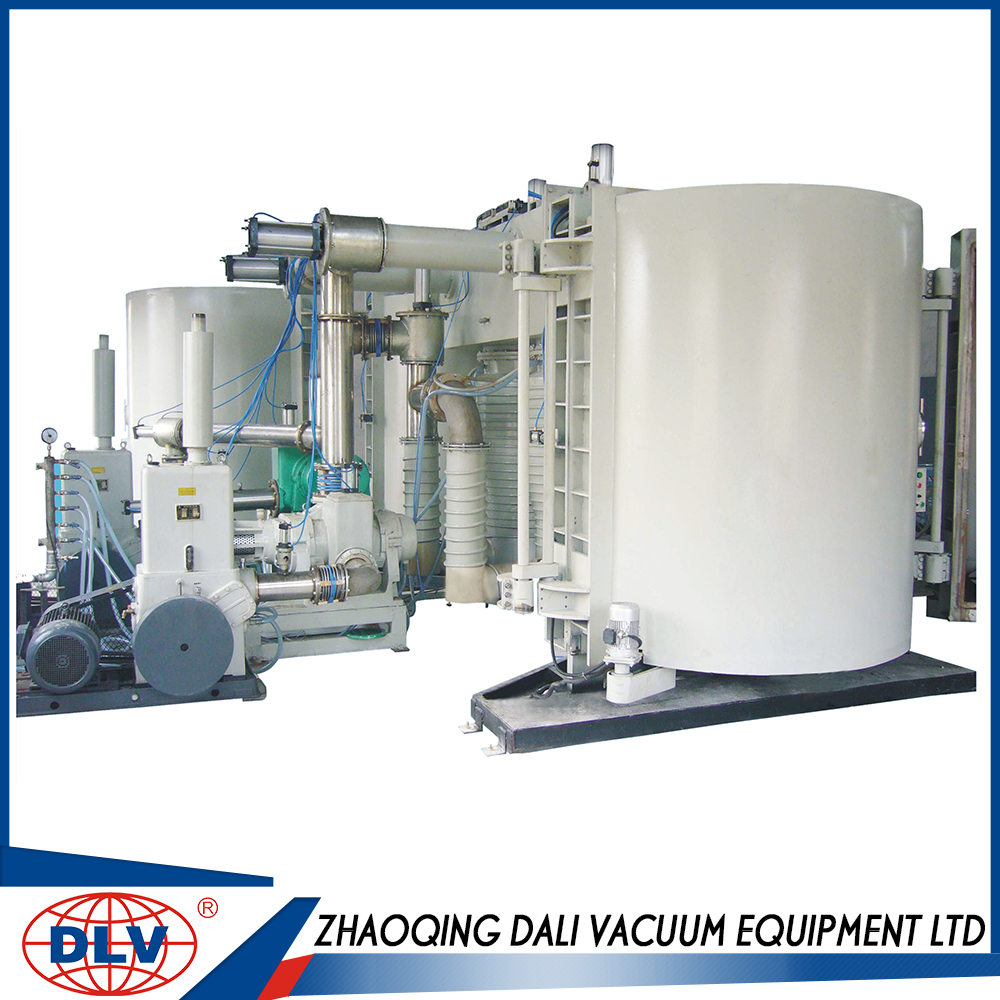

MID -FREQUENCY MAGNETRON COATING MACHINE is widely coat color on metal material , plastic material , acrylic board .such as watch belt , mobile phone shell, color accessories .
It utilizes a new application of themagnetron coating field, adopt twin targets Mid-Frequency power supplying for sputtering, with its high deposition rates and good working stability , can overcomes striking arc problems. This machine can be used for preparation of ITO, Al2O3, SiO2, Si3N4, TiO2 etc, films, and it is also the ideal equipment for preparing high quality compound and oxides.
Technical specification :
* High pressure Ion bombardment DC 3KW , 5KW, used for parts cleaning before coating
* Heating system PID control.Max .temperature is 350 degree
* Gas filling Mass flow controller
* Electrical controlling system PLC autocontrol , equipped with professional pro-interface (touch screen) for easy operation
* Vacuum measuring system One set of Digital Compound Vacuum Gauge
Packaging & Shipping
All the machine frameworks are protected by packing film .
machine pump is packaged in wooden box .
we export the machine in 20''or 40'' container .
All our new machine are guaranteed by DALI VACUUM in one year ( except people deliberately problem ).
In addition ,our Engineer available to service machinery overseas after -sales
And we also can provide techncians to repair machine in client 's country in charge after one year .
